2" Drainable Louver
2" Drainable Louver

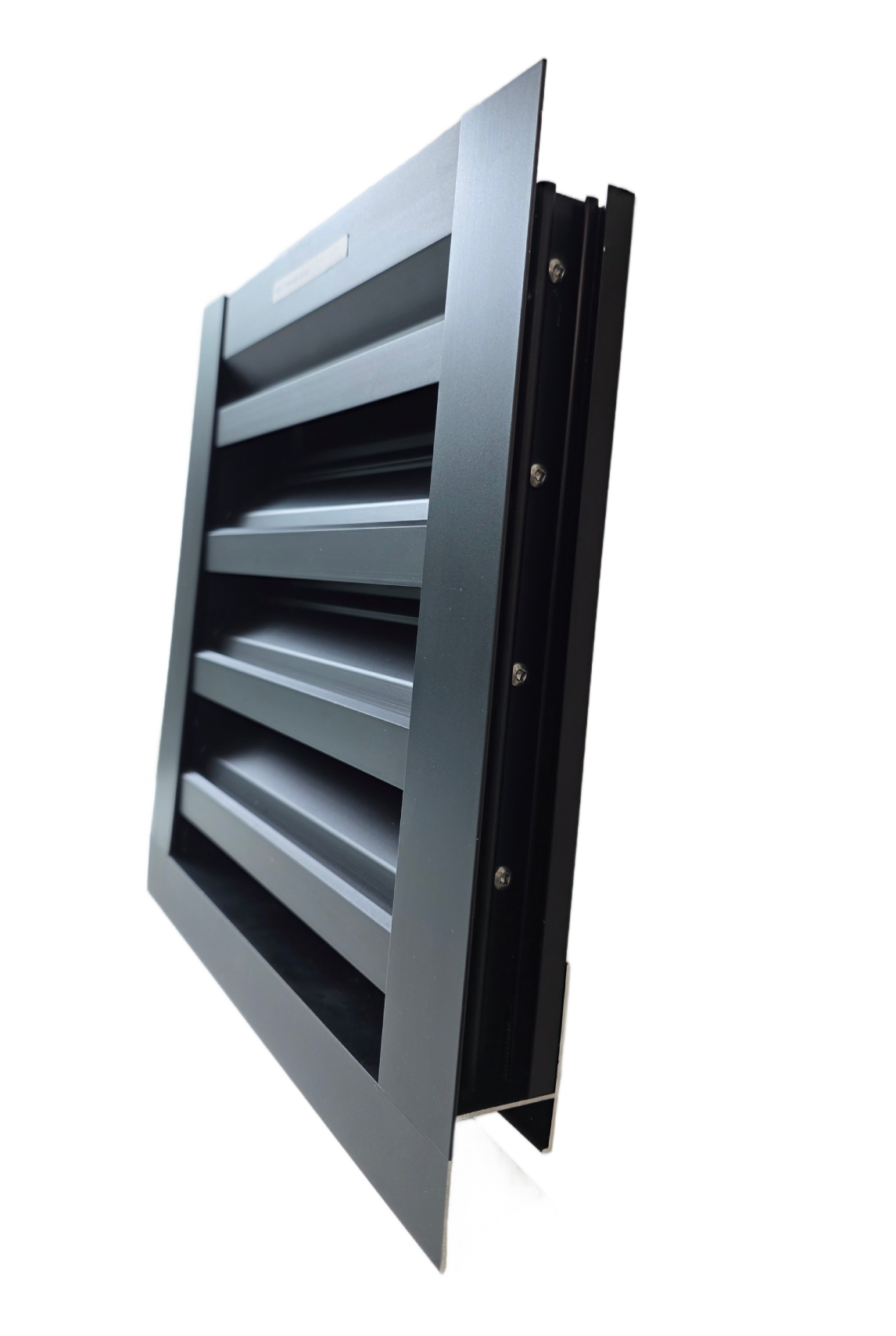

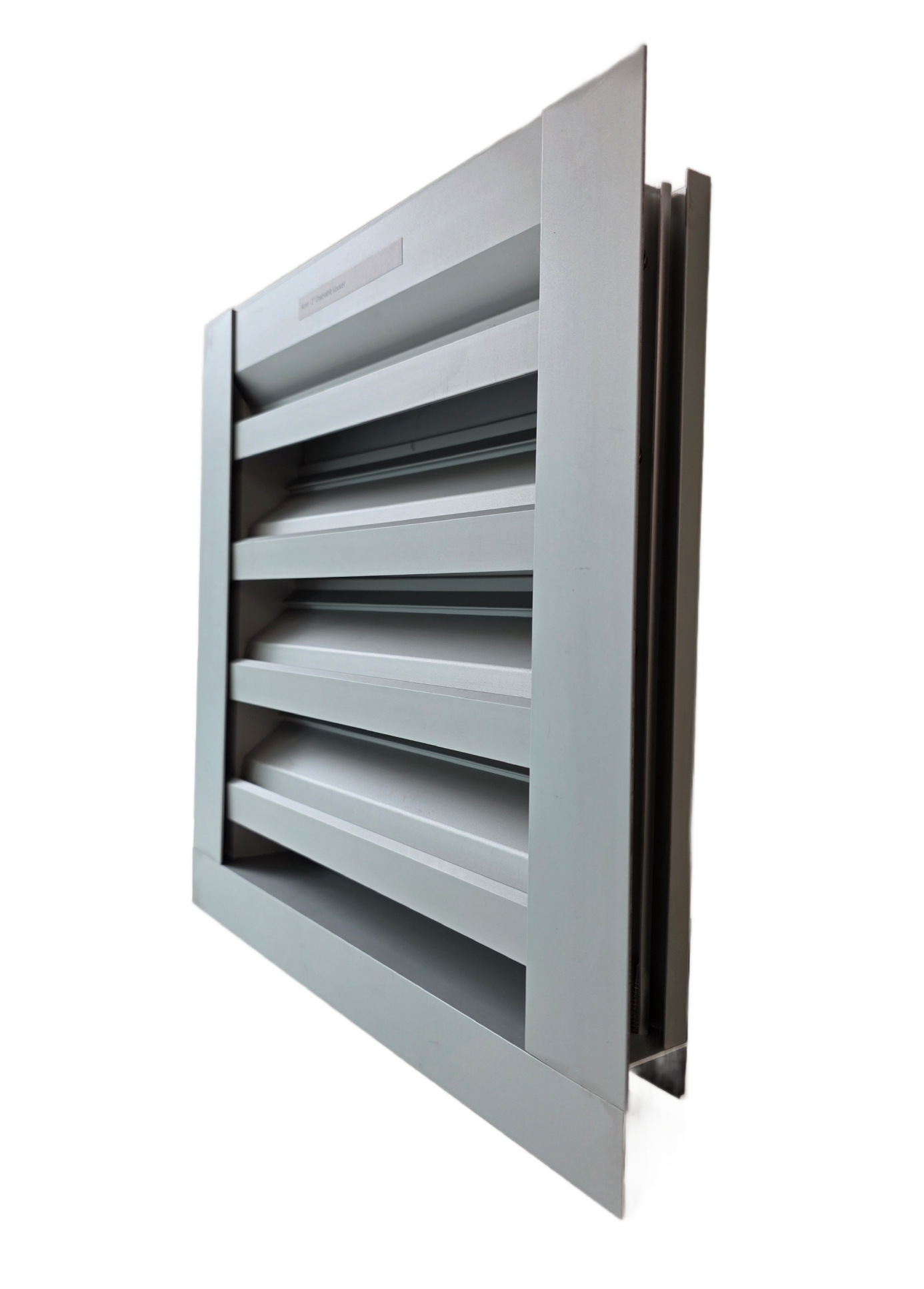

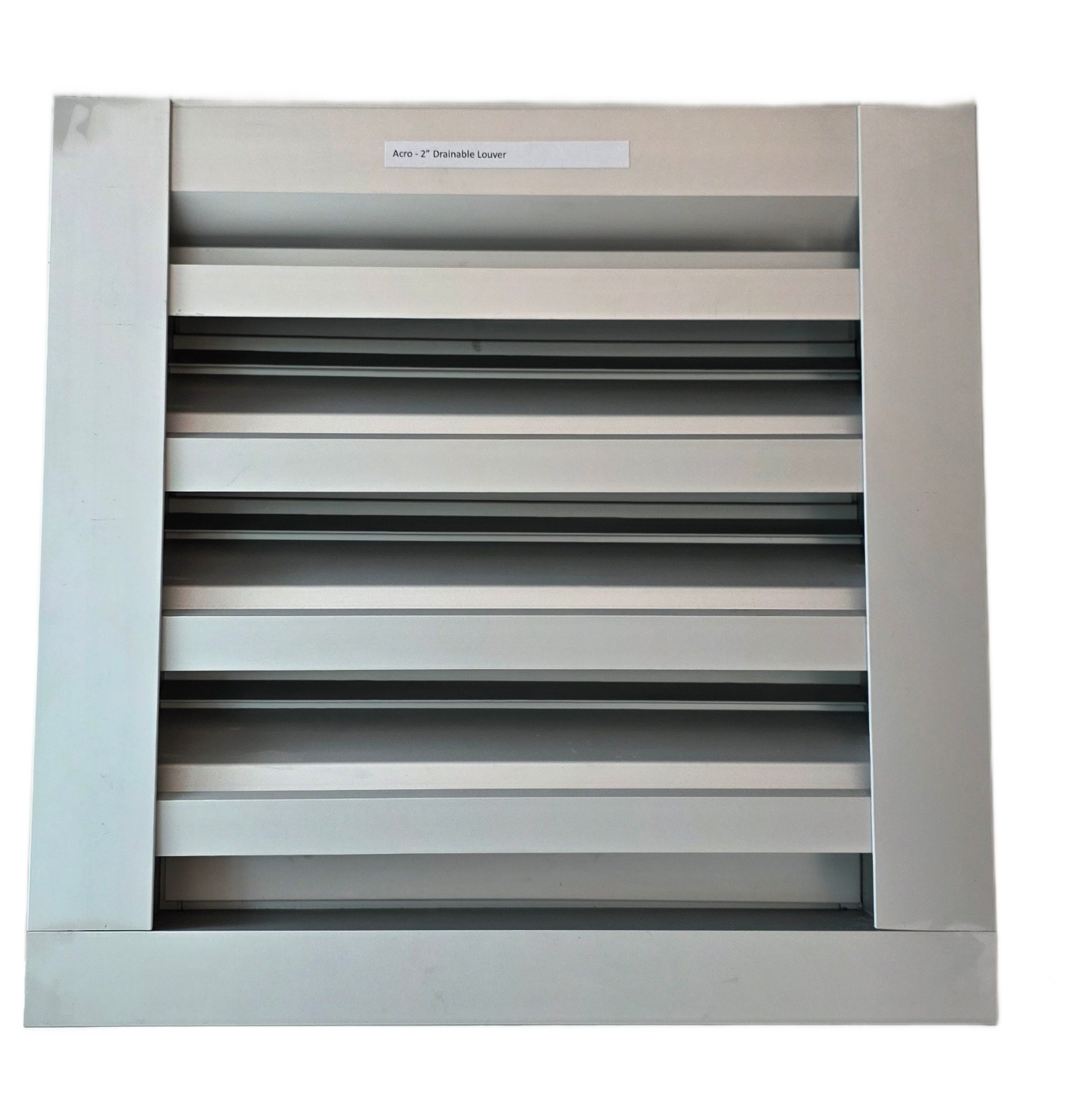

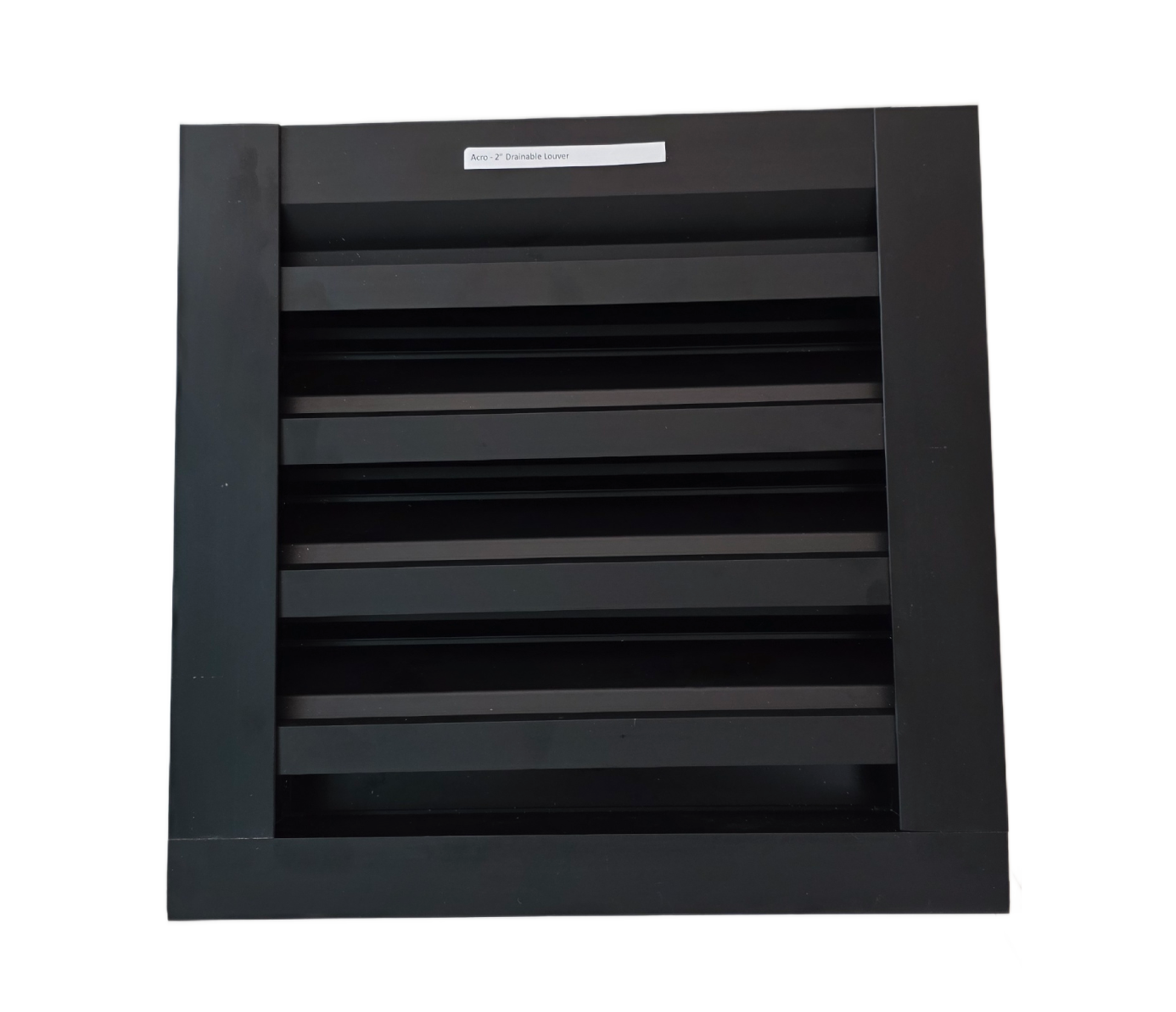

Extruded Aluminum 2" (51mm) Deep Drainable Blade. High performing louver designed to be integrated in a curtainwall or storefront system. Drainable blades divert water to jambs and out through the sill.
- Frame: 2" (51mm) deep frame. 1.5mm thick 6063-T6 extruded aluminum for frame and blades.
- 2-1/2" blade spacing.
- Blades attached by screw spline concealed in frame.
- Can be supplied with bird screen or blank off panel.
- Blade reinforcing available with 1" x 1" L angle.
- Extruded with glazing pocket flange to minimize air and water leakage at curtainwall or storefront transition.
- Minimum size: 8" x 8".
Standard Finishes:
∧
Architectural manual
∧
Acro Aluminum 2 inch Drainable Louver - Download HERE
CAD files
∧
2" Drainable Louver CAD files - Download HERE
