3000 Thermal Series

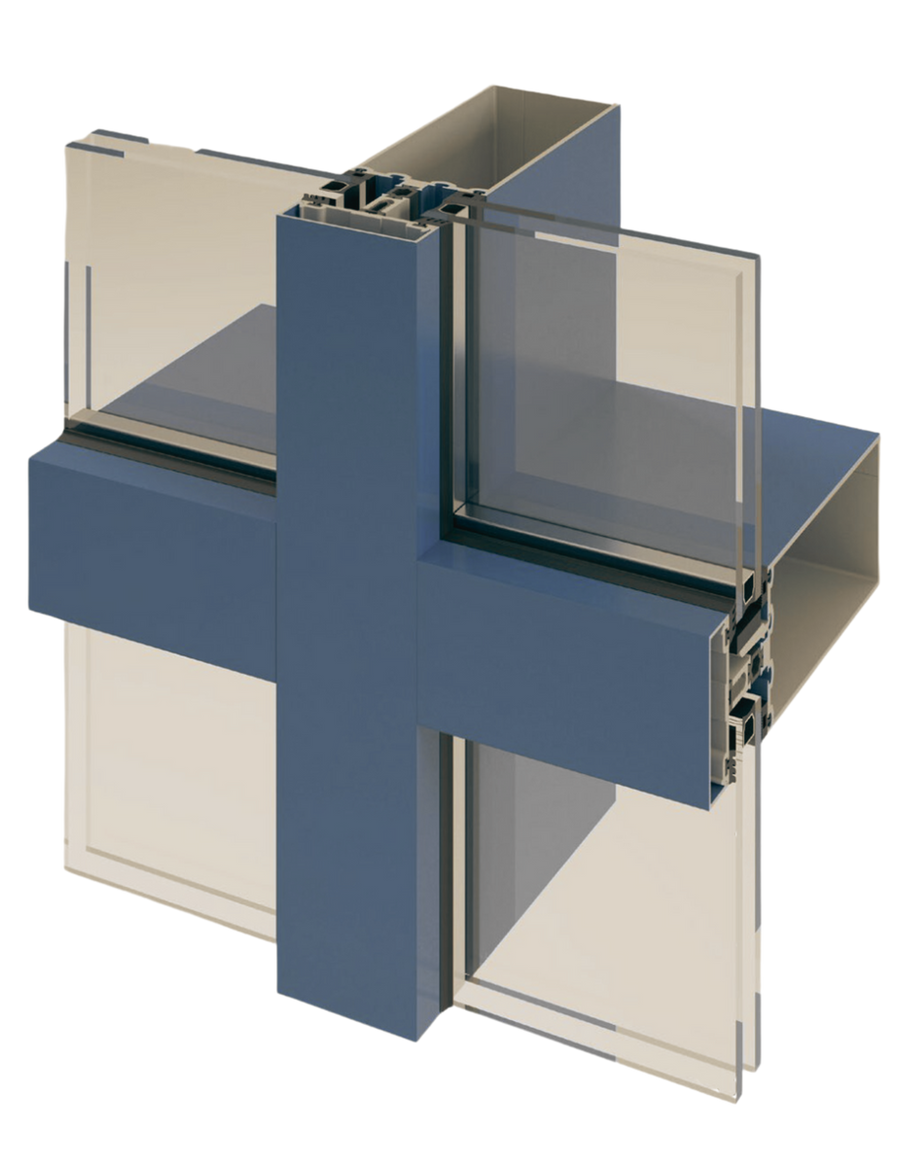

3000 Thermal Series 2 1/2" Curtainwall
A high-performance thermal curtain wall system featuring a 2 1/2” frame width with excellent thermal performance via polyamide thermal strut. Designed to integrate with door and vent systems and available in multiple glazing configurations.
- 2 1/2” frame width
- 5 1/8” or 8” back sections
- Outside glazed curtain wall
- Captured, 2 sided SSG, and 4 sided SSG configuration
- 1” infill (dual glazed) and 1 3/4” (triple glazed) compatible
- Concealed shear block joinery
- Excellent thermal performance with polyamide thermal strut
- Designed to integrate with door and vent systems
- Aluminum alloy 6063 T6 temper
- Pressure-equalized rainscreen system
- Steel reinforced mullions available
- Extended cap/sunshade available
Architectural Manual for 3000 Series Curtain Wall - Download HERE
ACRO 3000 System Installation Manual - Download HERE
Acro Aluminum Air/Water/Structure Test Report for 3000 Series Curtain Wall - Download HERE
Curtain Wall Thermal Modelling Test - Download HERE
3000 Series Curtain Wall CAD files - Download HERE
2000 Series

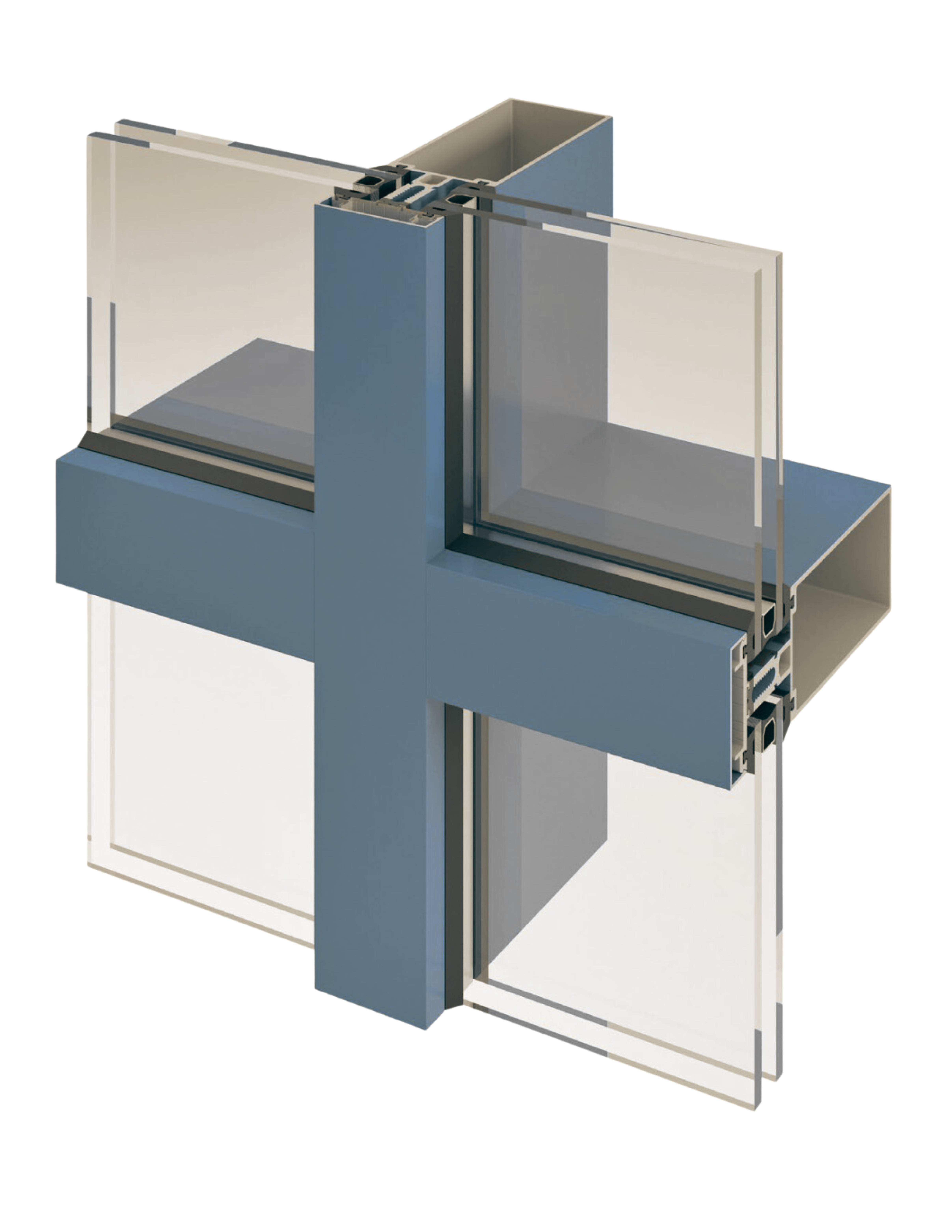

2000 Series 2" Curtain Wall
A reliable and versatile outside glazed captured curtain wall system featuring a 2” frame width with continuous gasket thermal break. Designed to integrate with door and vent systems with injection molded corner blocks to control water infiltration.
- 2” frame width
- 4” backsection (6” overall depth)
- Outside glazed captured curtainwall
- 1” infill (dual glazed)
- Concealed shear block joinery
- Continuous gasket thermal break
- Designed to integrate with door and vent systems
- Aluminum Alloy 6063 T6 temper
- Pressure-equalized rainscreen system
- Injection molded corner block to control water infiltration
- Steel reinforced mullions available
- Extended cap/sunshade available
Architectural Manual for 2000 Series Curtain Wall - Download HERE
Acro Aluminum Air/Water/Structure Test Report for 2000 Series Curtain Wall - Download HERE
Curtain Wall Thermal Modelling Test - Download HERE
ACRO Aluminum 2000 Series CAD files - Download HERE
SB2000 New System Drawing - Parts List - Download HERE
