8000 Series — Tested & Verified
Independently tested for air, water and structural performance, so your design team has the numbers it needs to specify with confidence.
8000 Series
System Details
On mobile, tap the system below to expand full specs.

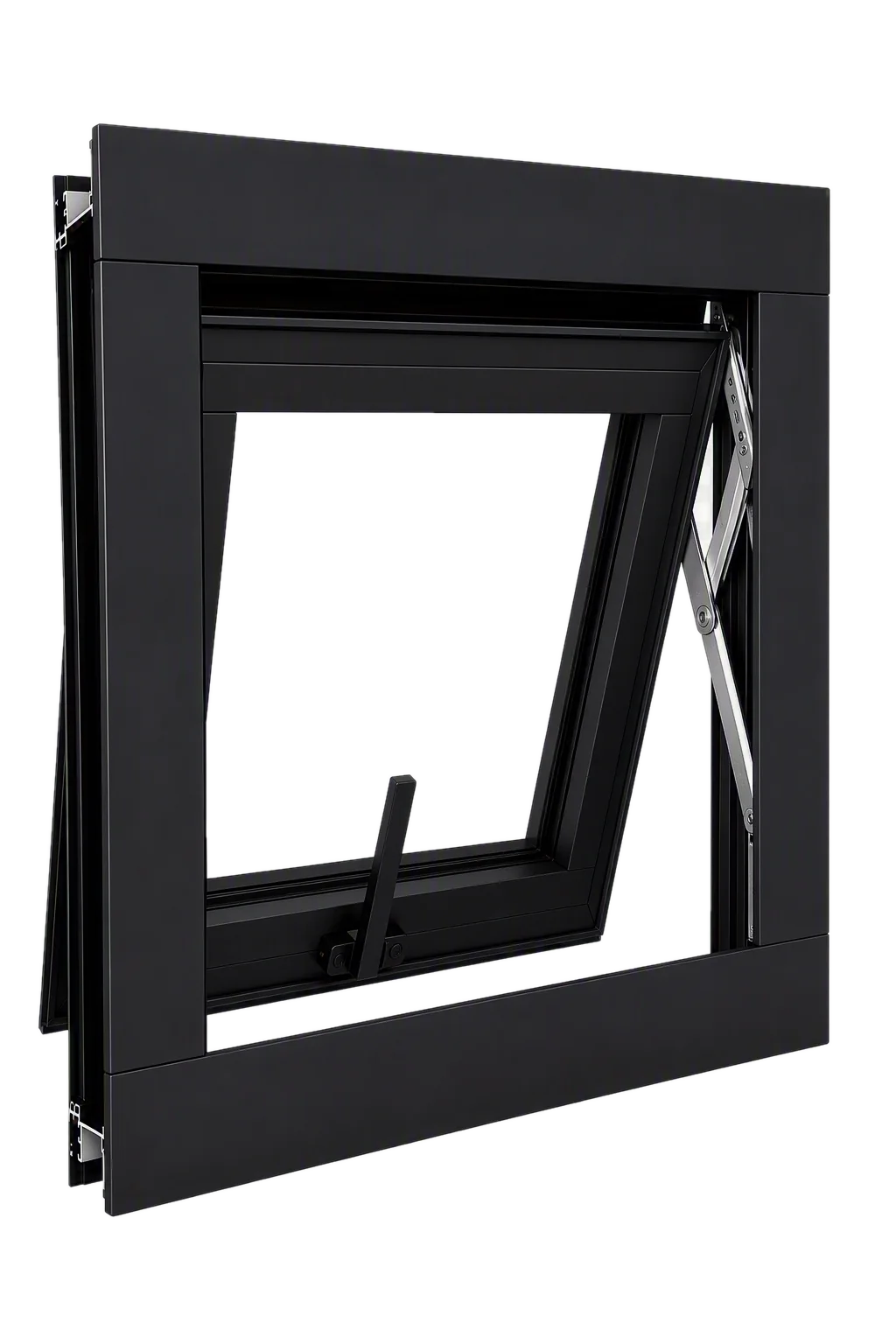

8000 Series Operable Vent Window
Operable ventilation built into your glazed envelope
A thermally broken, top-hung project-out operable vent window engineered specifically to sit inside our storefront and curtain wall subframes, giving a sealed commercial glazing package a tested, code-compliant way to bring in fresh air.
- Polyurethane pour and debridge thermal break
- Overlap vent construction with rigid corner key joinery
- Equal leg subframe for storefront, unequal leg for curtain wall
- 1″ glazing infill, extruded screen frames
- 4 Bar Stainless Steel Hinges with limit stop, Cam Handle Locks standard
- Optional Roto Style Crank Operator, WOCD device, pole & pole ring
- Open in and casement configurations also available
- Shop or field glazed
Clear Anodized, Dark Bronze Anodized and Mill Finish are standard, shown above. Custom painted colors are available and require additional lead time.
Read full description
The 8000 Series is a thermally broken operable vent window system engineered to sit inside our storefront and curtain wall subframes, giving a sealed commercial glazing package a tested, code-compliant way to bring in fresh air. A polyurethane pour and debridge thermal break runs through the frame, paired with overlap vent construction and rigid corner key joinery for a durable, weather-tight seal around the operable sash. The subframe is available in two configurations — equal leg for storefront applications and unequal leg for curtain wall applications — so it integrates cleanly with whichever system it's paired with, using the same 1 inch glazing infill. Independent testing backs up the numbers: 0.133 L/s·m² (0.026 cfm/ft²) air infiltration at 75 Pa, no water penetration up to 720 Pa (~15.04 psf), and no structural breakage up to 3360 Pa (~70.18 psf), with NFRC-modeled U-values as low as 2.320 W/m²·K. Sizing ranges from a 17 inch by 17 inch minimum to a 60 inch by 48 inch maximum. Standard hardware includes 4 Bar Stainless Steel Hinges with a limit stop and Cam Handle Locks, with optional Roto Style Crank Operator, WOCD device, pole and pole ring, and insect screens with wickets to access cam handles — open-in and casement configurations are also available. Extruded screen frames and the system can be shop-glazed or field-glazed depending on project logistics.
