Morrison Windows Ltd. · Casement & Awning Windows

1800 Series

Morrison’s 1800 Series uses the REHAU ASPEKT system for casement, awning and fixed windows. Combine ventilation and fixed glass in a continuous frame for new construction or renovation.

View Product Brochure →
Casement, awning & fixedTriple weather sealsUp to 35 mm glazingContinuous-frame layouts

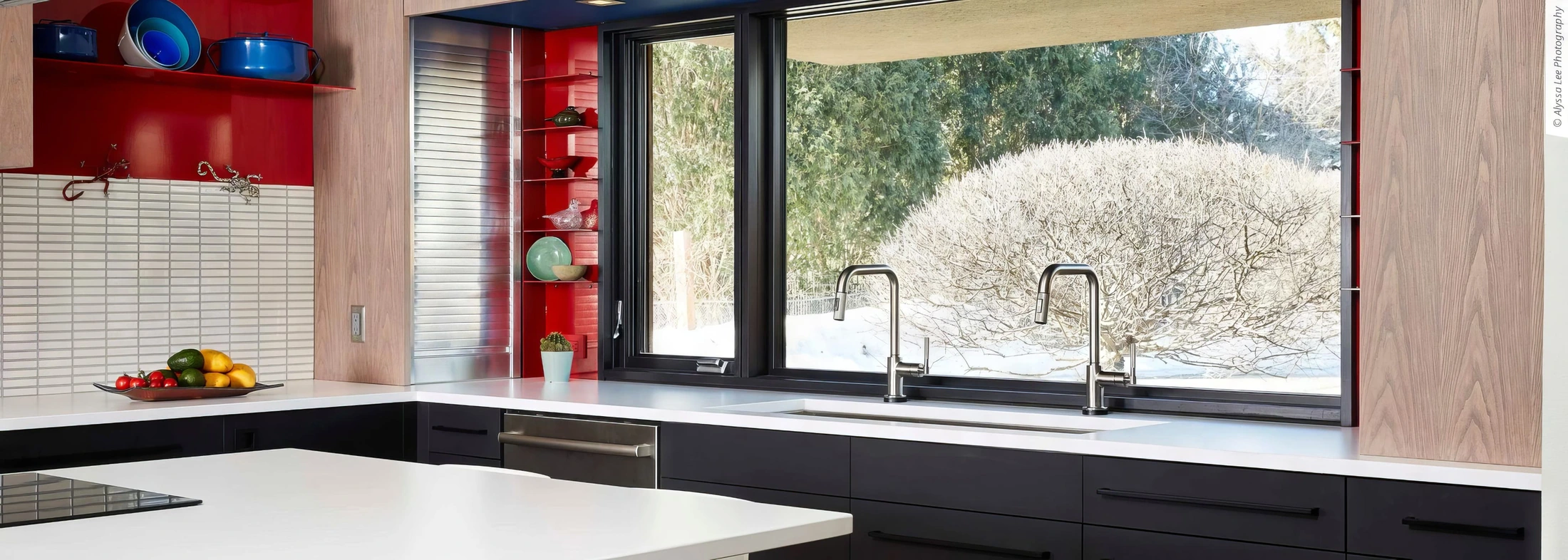

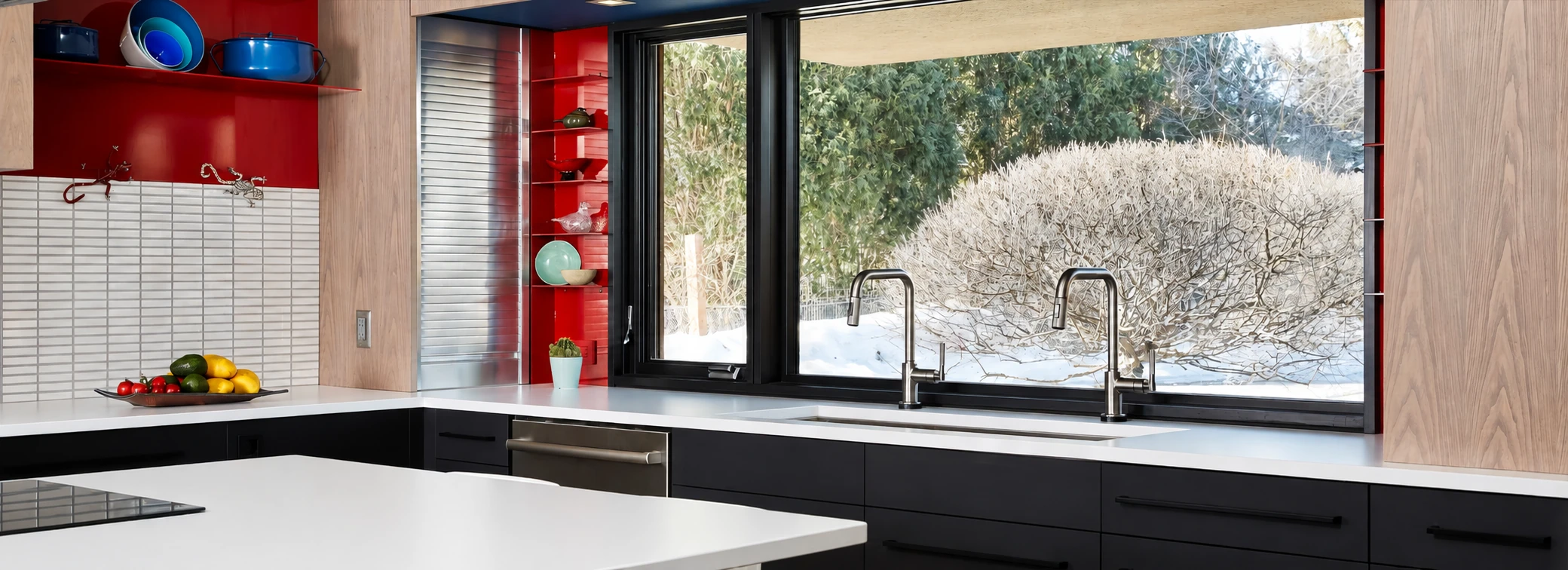

1800 Series product presentation
1800 Series Residential Collection

How It Works · Exterior View

See How Your Window Opens.

Choose an operation and select Open. These simplified examples show movement, not exact product profiles or panel dimensions.

Casement

Closed

Illustrative handing and opening distance. Fixed panels stay stationary. Confirm the final configuration for your opening.

Product Overview

1800 Series — Features & Options

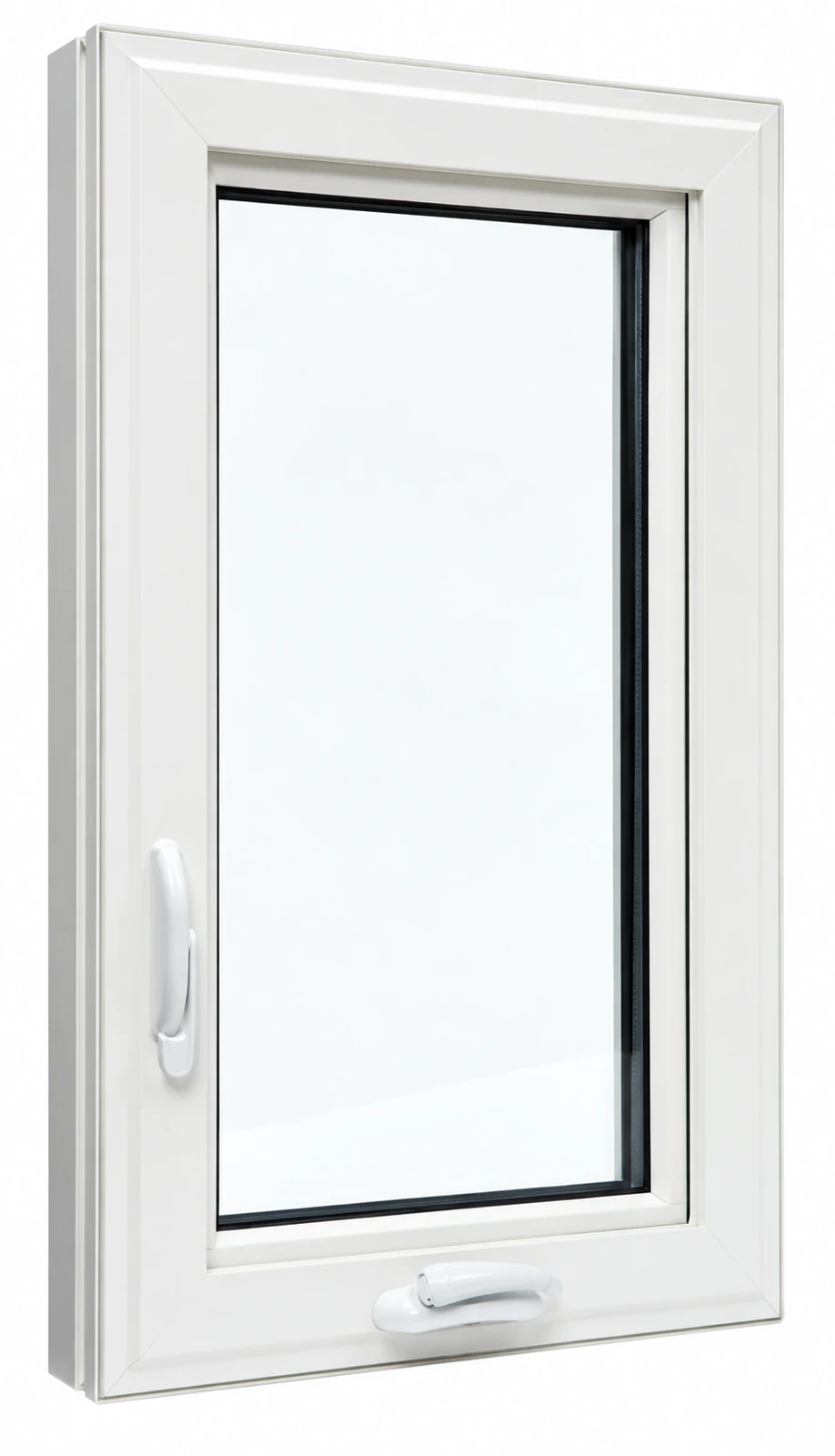

1800 Series
Casement & Awning Windows

1800 Series

Configurations
Casement, awning & fixed
Sealing
Triple weather seals
Glazing capacity
Up to 35 mm glazing
Frame design
Continuous-frame layouts

More on This System

System Details

Casement & Awning Windows

1800 Series

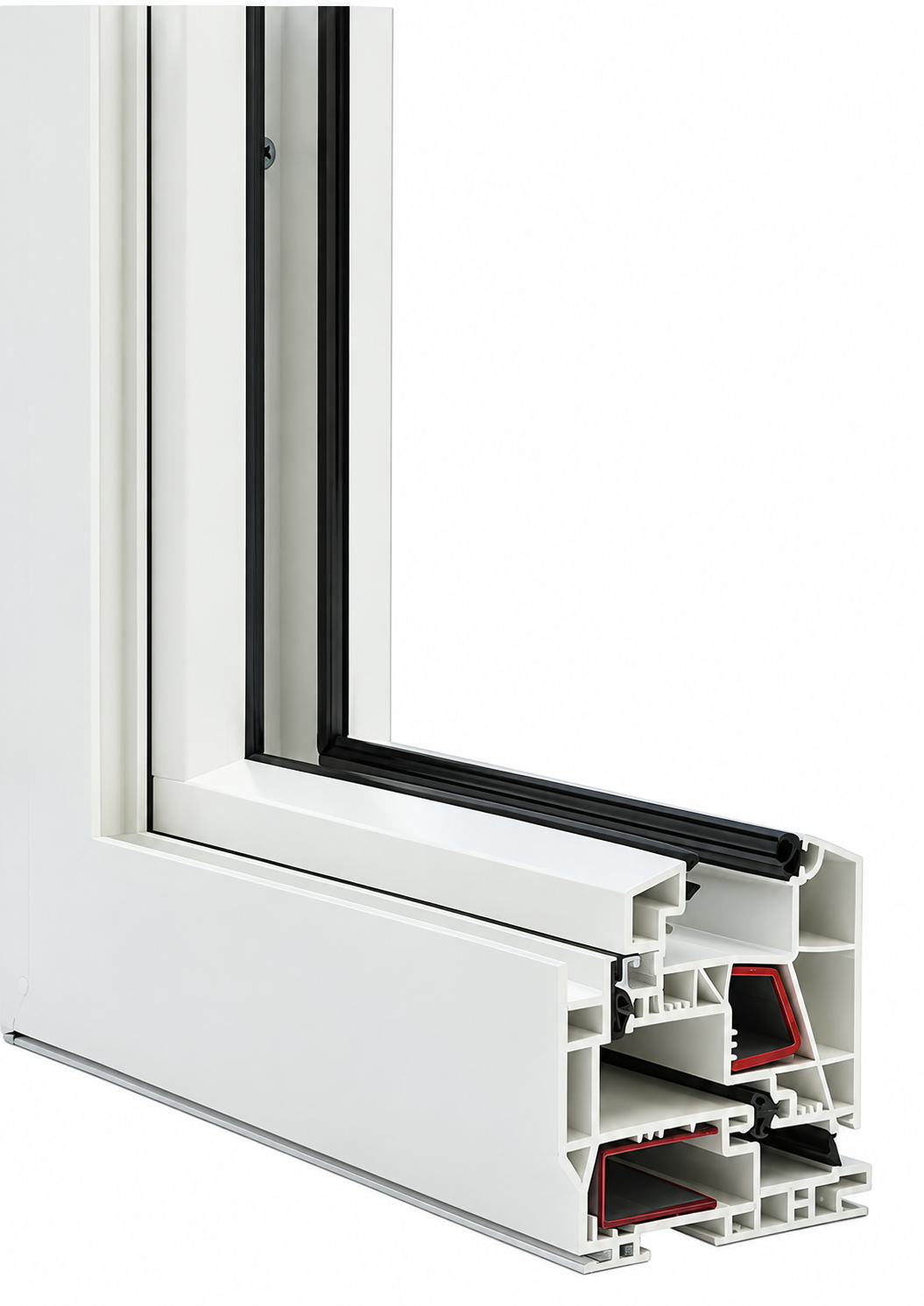

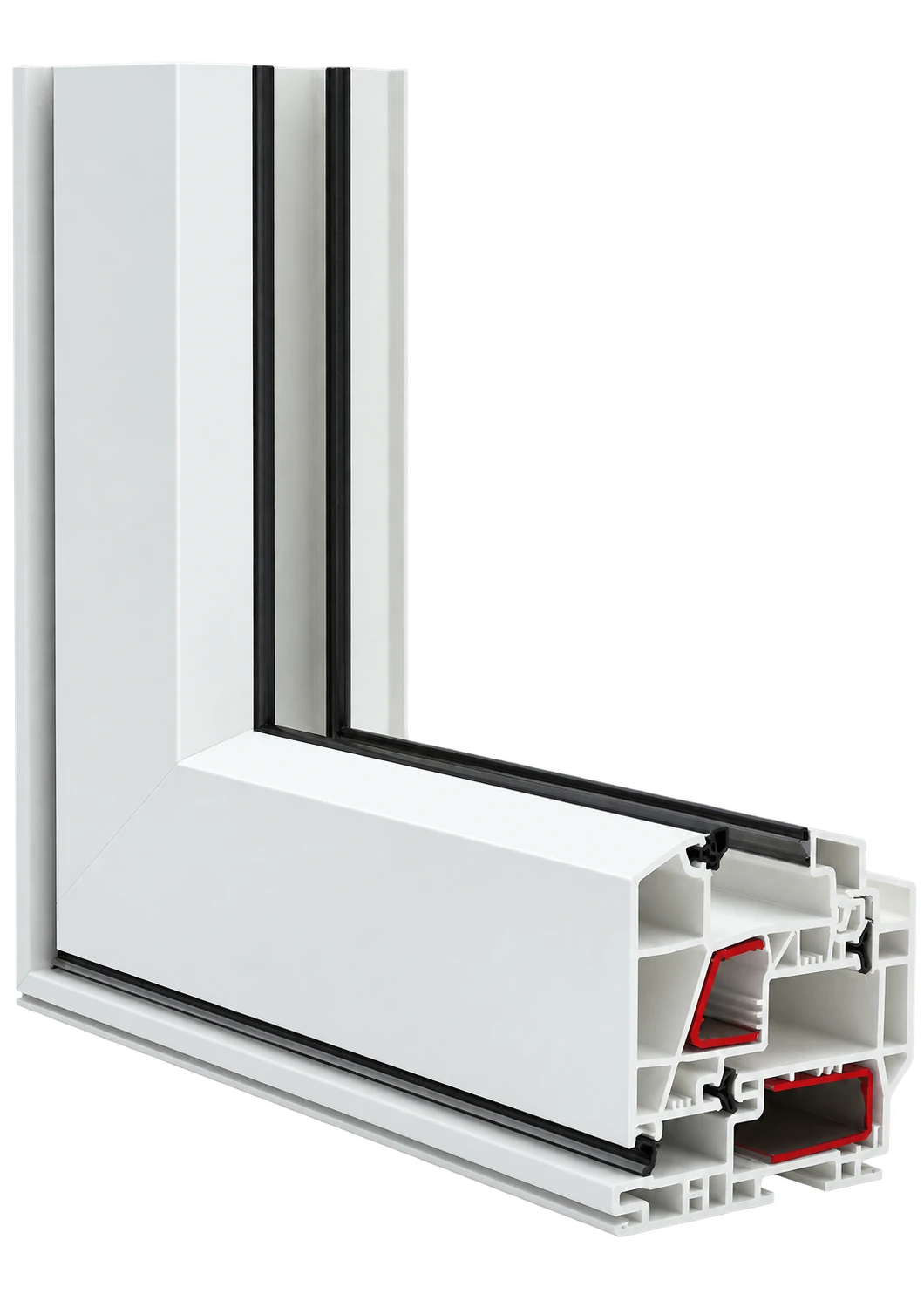

1800 Series product view
Key Features
  • Included insect screens →
  • Triple sealing around the sash supports weather protection.
  • Continuous frames accommodate coordinated multi-lite layouts.
  • REHAU lists 83, 86 and 89 mm frame options; confirm the profile for your wall assembly.
  • Glazing capacity up to 35 mm supports double- and triple-glazed packages.
  • Accessory grooves accommodate compatible trim, extension jambs and mulling components.
Available ChoicesExplore grille patterns →
Screen options, including compatible FlexScreen configurationsGlass package and spacer selectionInterior and exterior finishes — confirm current availabilityHardware, dimensions and installation details coordinated for your project

Plan the details

Explore residential hardware →

Availability varies by product series and configuration. Review glass choices and colours and finishes, then confirm the combination for your opening.

View residential brochures and public product literature →

Manufacturer Reference

System Performance

REHAU-published benchmarks for the system. Results vary with size, configuration, glass, reinforcement and hardware.

System performance benchmarks
Structural (NAFS)Up to CW-PG100
Acoustical (ASTM E90)Up to STC 40
U-value — simulatedDown to 0.17

REHAU webpage benchmarks. The April 2020 sheet instead lists CW-PG70, simulated thermal value 0.18 and OITC 34. These are different published summaries, not a single tested Morrison assembly.

Thermal figures are reproduced in the manufacturer's published notation; confirm units and the exact assembly report before specification. STC and OITC are ratings, not guaranteed reductions in site noise. These summaries do not establish code, impact or Passive House compliance for an order.

View brochure ↗

Product Gallery

Configurations & Inspiration

1800 Series view 1
1800 Series view 2
1800 Series view 3
1800 Series view 4

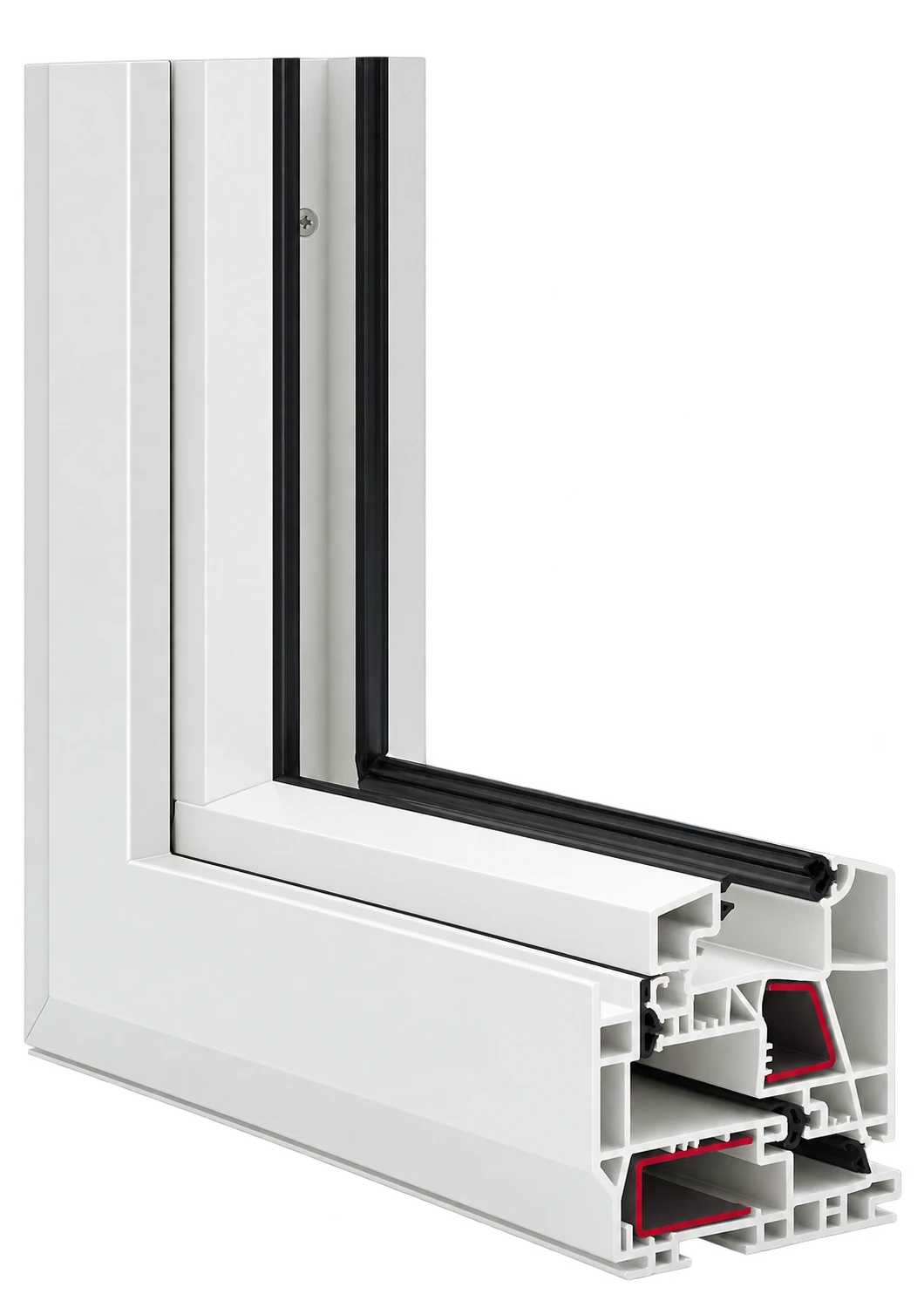

1800 Series view 5
1800 Series view 6
1 / 6
Three charcoal-framed insect screens with fine mesh and left-side pull tabs
Illustrative screen image. Screen size and configuration depend on the opening.

Included with your purchase

Insect screens for windows and sliding doors

Morrison includes insect screens with all residential windows and sliding doors. Screens let you enjoy ventilation while helping keep insects outside.

Confirm the screen configuration for your selected opening with our team. Decorative grilles and surface-applied grids are optional design choices.
