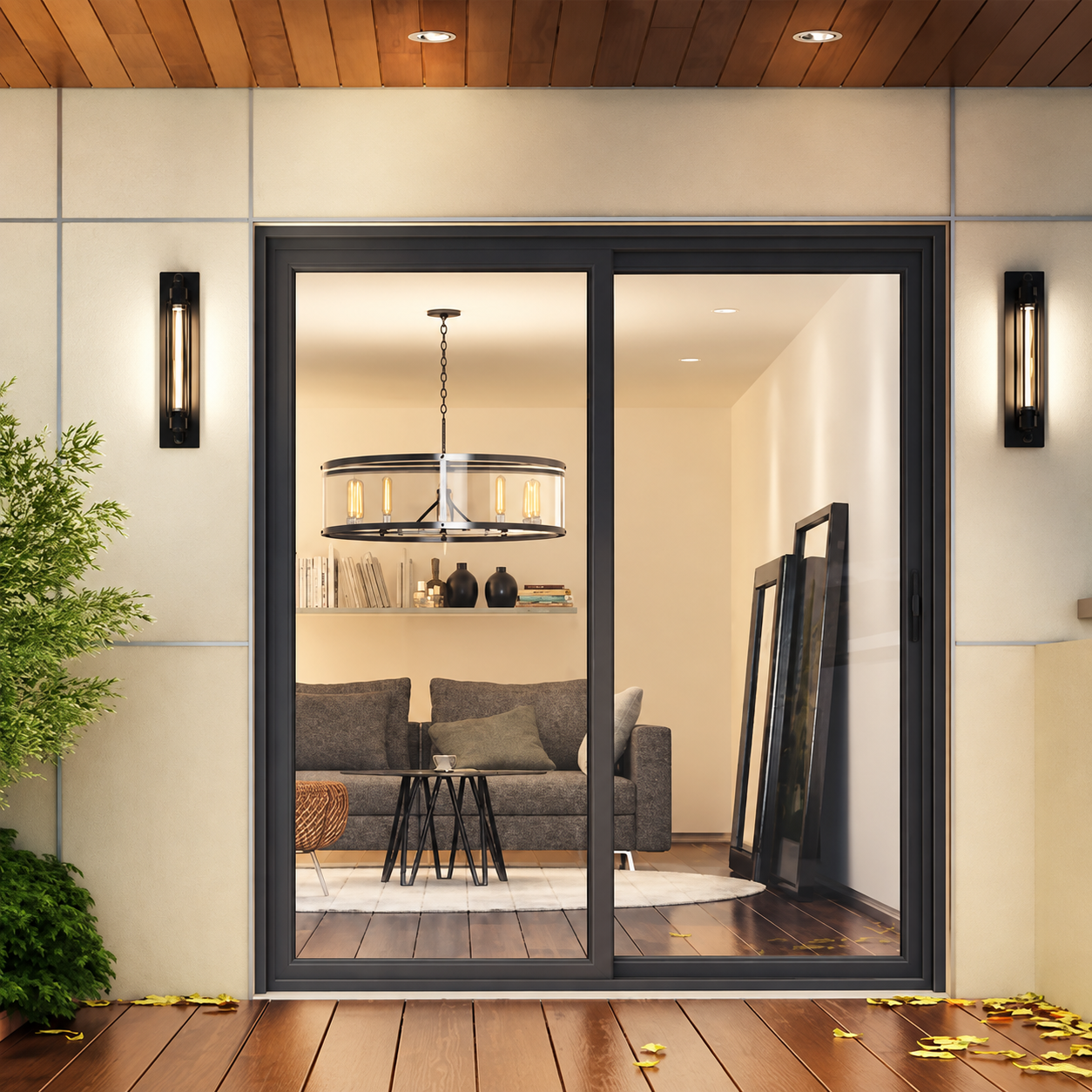

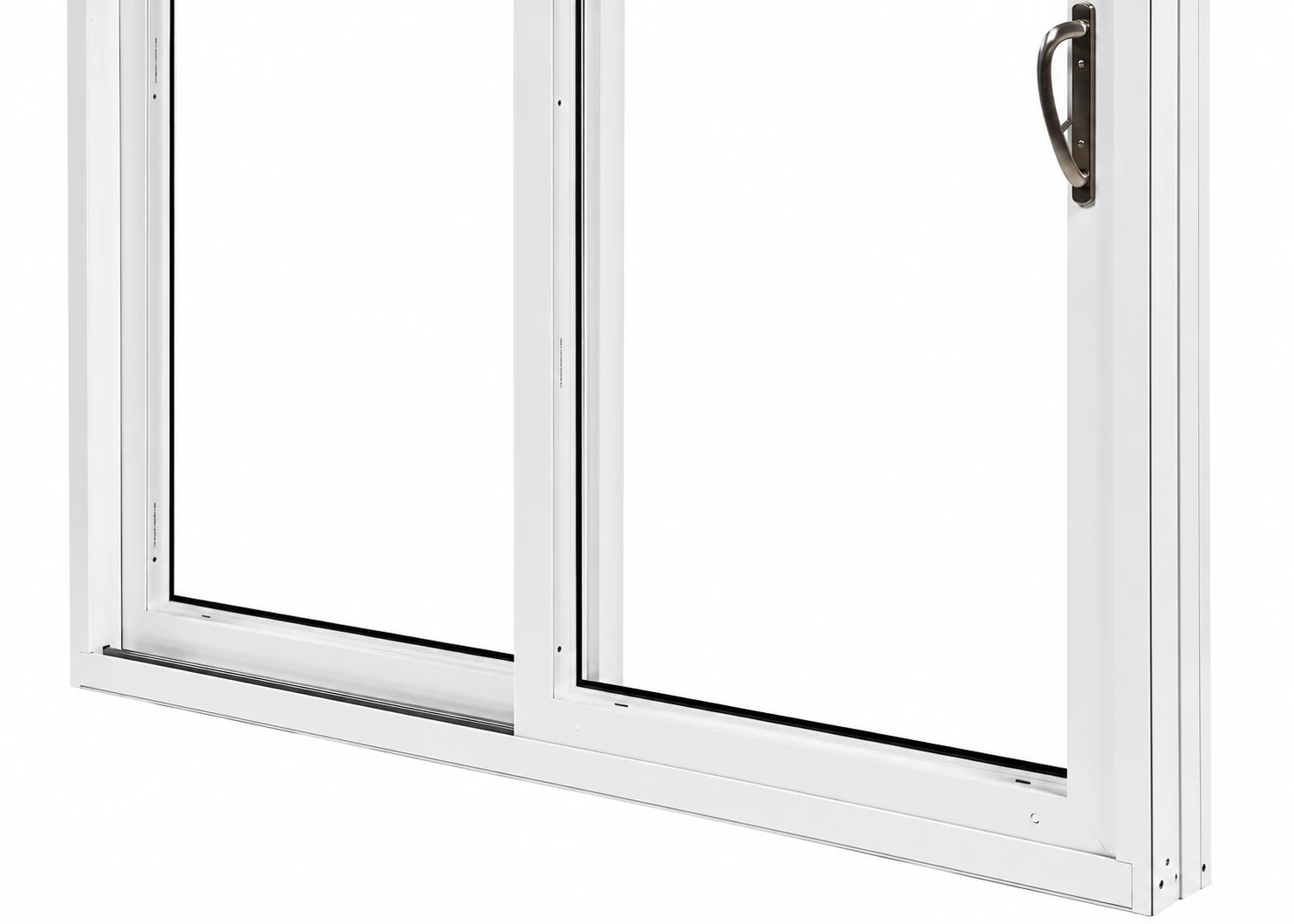

Morrison’s 2200 Series uses the REHAU sliding patio-door system to connect indoor and outdoor spaces without a swinging leaf. Choose two-, three- or four-panel arrangements with coordinated fixed glass.
Seven exterior-view sliding layoutsCompatible sidelights and transomsGlass package and spacer selectionInterior and exterior finishes — confirm current availabilityHardware, dimensions and installation details coordinated for your project
Illustrative layouts, not fabrication drawings. Confirm dimensions, operation, hardware and divided-light details with Morrison before ordering. Shaped and combined units require project-specific review.
Manufacturer Reference
System Performance
REHAU-published benchmarks for the system. Results vary with size, configuration, glass, reinforcement and hardware.
System performance benchmarks
Structural (NAFS)
Up to LC-PG55
Acoustical (ASTM E90)
Up to STC 38
U-value — simulated
Down to 0.16
REHAU webpage benchmarks. The supplied December 2014 brochure lists LC-PG65; the May 2020 sheet lists LC-PG55, OITC 33 and simulated thermal value 0.18. Confirm the current report for the selected assembly; historical brochure claims are not current certification.
Thermal figures are reproduced in the manufacturer's published notation; confirm units and the exact assembly report before specification. STC and OITC are ratings, not guaranteed reductions in site noise. These summaries do not establish code, impact or Passive House compliance for an order.
