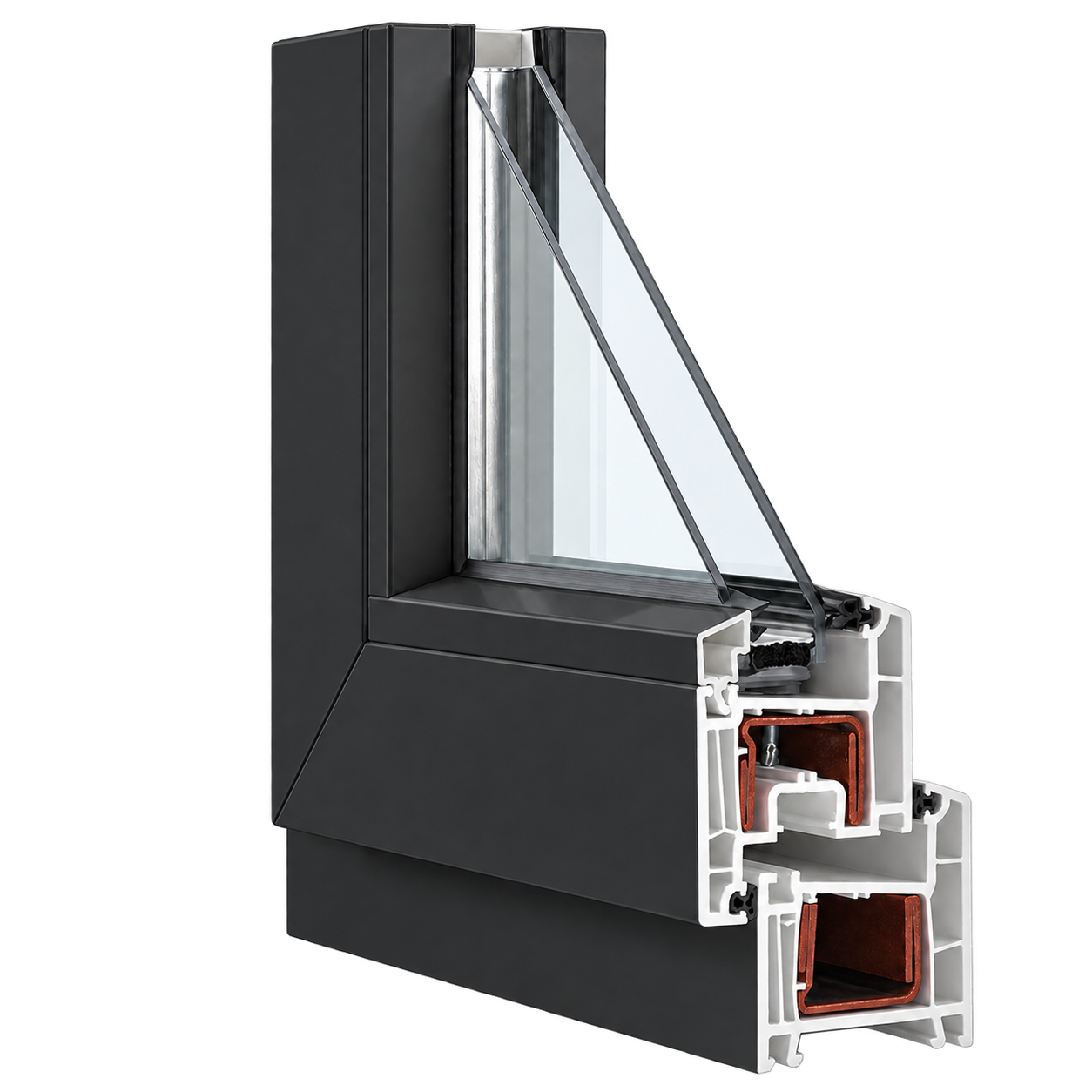

Fabricated by Morrison using REHAU System 4500, these hinged and French doors coordinate entrances, balconies and patio openings with matching windows and fixed lights.
Single and double doors with fixed-light combinationsGlass package and spacer selectionInterior and exterior finishes — confirm current availabilityHardware, dimensions and installation details coordinated for your project
Choose a single hinged door or paired French doors, with inward or outward opening and fixed-light combinations. Confirm the handing and operation for your selected layout.
All layouts are viewed from the exterior. Solid side-opening lines indicate outswing; dashed lines indicate inswing. The upward triangle in the first layout indicates top-tilt ventilation.
Fixed left + top-tilting right panelConfiguration 01RH single outswing doorConfiguration 02Double outswing doorsConfiguration 03Fixed left + right outswing doorConfiguration 04Single inswing doorConfiguration 05Double inswing doorsConfiguration 06
Schematic reference only. Confirm viewing side, operation, handing, swing direction and dimensions with Morrison Windows before ordering.
Manufacturer Reference
System Performance
REHAU-published benchmarks for the system. Results vary with size, configuration, glass, reinforcement and hardware.
Swing & French hinged doors
Swing & French hinged doors performance benchmarks
Structural (NAFS)
Up to LC-PG40
Acoustical (ASTM E90)
Up to STC 40
U-value — simulated
Down to 0.23
Impact — outswing double only
DP-65 (HVHZ), qualifying assemblies
REHAU hinged-door webpage benchmarks. Older literature reports LC-PG80 and simulated thermal value 0.24; these must not be substituted without the relevant report. The system brochure reports OITC 33. Performance depends on the door assembly.
Thermal figures are reproduced in the manufacturer's published notation; confirm units and the exact assembly report before specification. STC and OITC are ratings, not guaranteed reductions in site noise. These summaries do not establish code, impact or Passive House compliance for an order.
