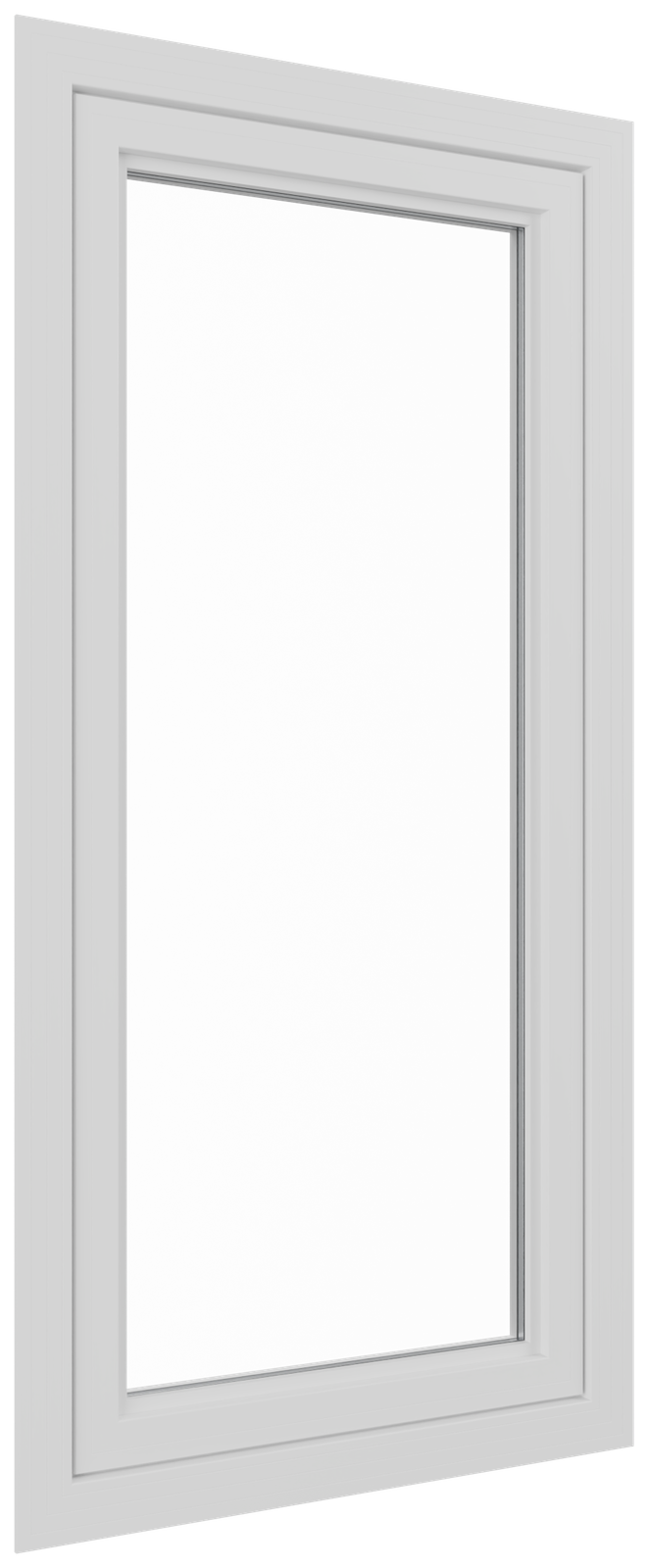

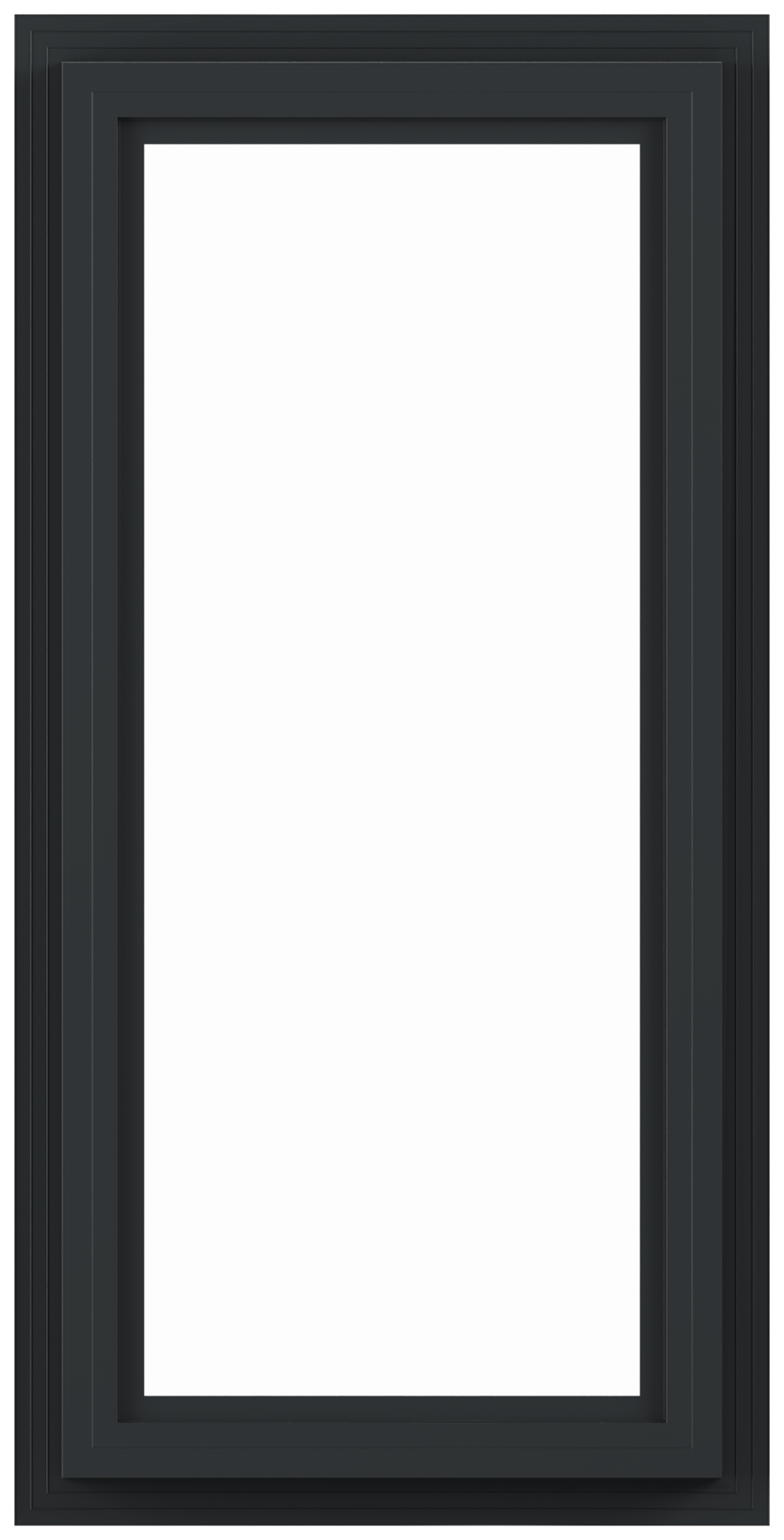

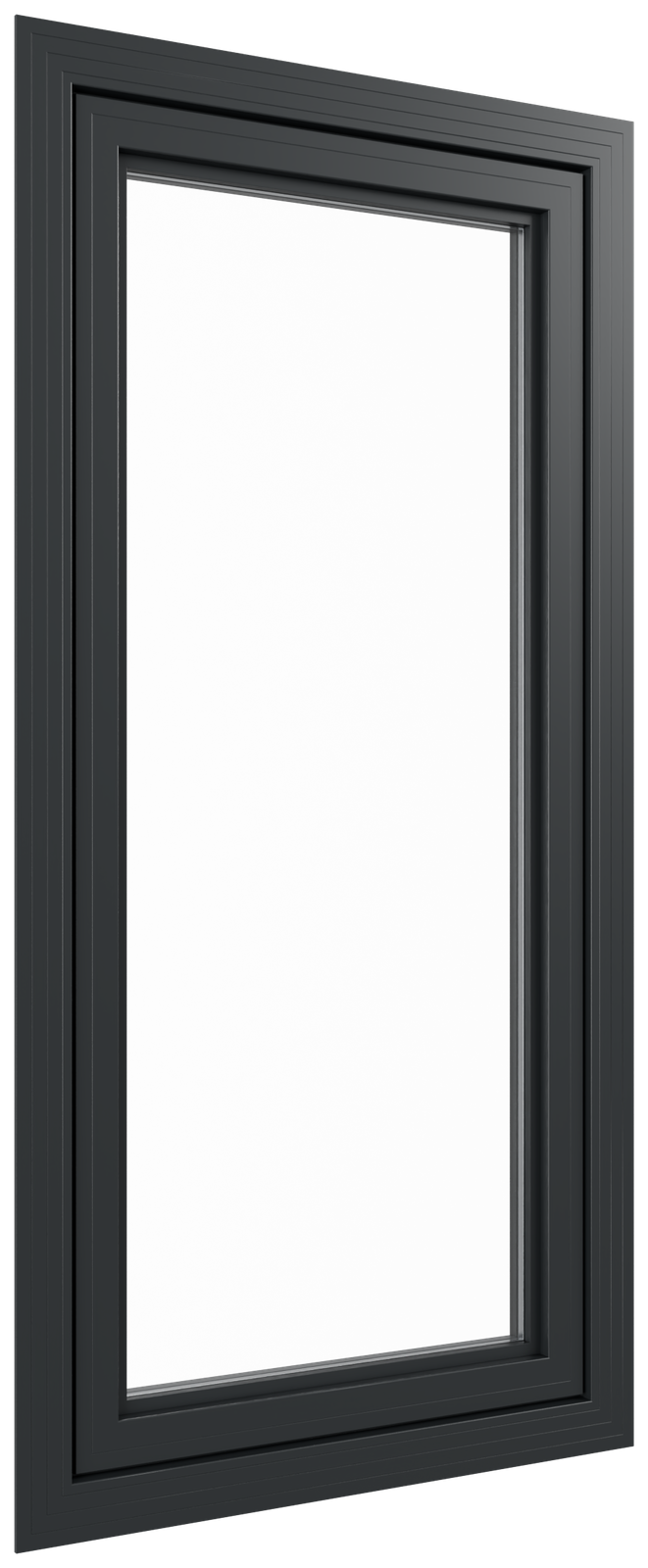

407 Series casement and awning windows with renovation flange only.
Renovation flange onlyDouble or triple glazingCasement and awning configurations
407 Series Residential Collection
Installation & glazing
Renovation flange only. Double glazing uses a 25 mm overall IGU. Triple-glazed IGUs in the Morrison range are 25 mm or 35 mm overall; confirm which package applies to this series and configuration.
Overall frame limits and operating-vent limits are different. Maximum width and height remain subject to the selected layout, glass and project review.
How It Works · Exterior View
See How Your Window Opens.
Choose an operation and select Open. These simplified examples show movement, not exact product profiles or panel dimensions.
This series can be configured as a side-hinged casement or a top-hinged awning window. A finished window operates according to its selected configuration. Confirm sizes, hardware and layout with Morrison.
Exterior view · Hardware omitted
Casement
Closed
Illustrative handing and opening distance. Fixed panels stay stationary. Confirm the final configuration for your opening.
Product Overview
407 Series — Features & Options
Renovation Casement
407 Series
Flange
Renovation flange only
Maximum overall frame
96″ W × 84″ H (8′ × 7′)
Maximum casement vent
36″ W × 60″ H
Maximum awning vent
48″ W × 36″ H
Glazing
Double- or triple-glazed IGU options
Energy performance
Depends on the exact model and glass package. Ask Morrison for the applicable energy sheet.
Double- or triple-glazed IGU packages; confirm the package for your configurationLow-E and argon glass packagesColour and grille selectionsScreens and hardware choicesFixed and operable combinations
