Bring natural daylight into bathrooms, hallways, closets, laundry rooms, kitchens and other interior spaces where a conventional skylight or vertical window may not be practical.
Sun tubes capture daylight at the roof and carry it through a reflective tube to a ceiling diffuser. Choose a rigid or flexible system to suit the route through your home.
Daylight enters through the rooftop dome or collector.
02
Transfer
A reflective tube carries the light through the roof and attic space.
03
Diffuse
A ceiling diffuser spreads the incoming daylight into the room.
Two ways to reach the room
Find the Right Tube
The route between roof and ceiling is the starting point.
A direct route
Rigid Sun Tubes
A smooth, highly reflective aluminum light pipe transfers daylight from the rooftop collector to the ceiling. Rigid tubing is generally preferred when a reasonably direct route is available.
Elbows can navigate minor offsets, and extensions accommodate additional length. Keep bends to a minimum to preserve daylight transmission.
Diameters
10, 13, 18 and 21 inches
Kit components
Collector, flashing, 4 ft rigid tube and ceiling diffuser
Best for A relatively clear route with daylight transmission as the priority.
More routing flexibility

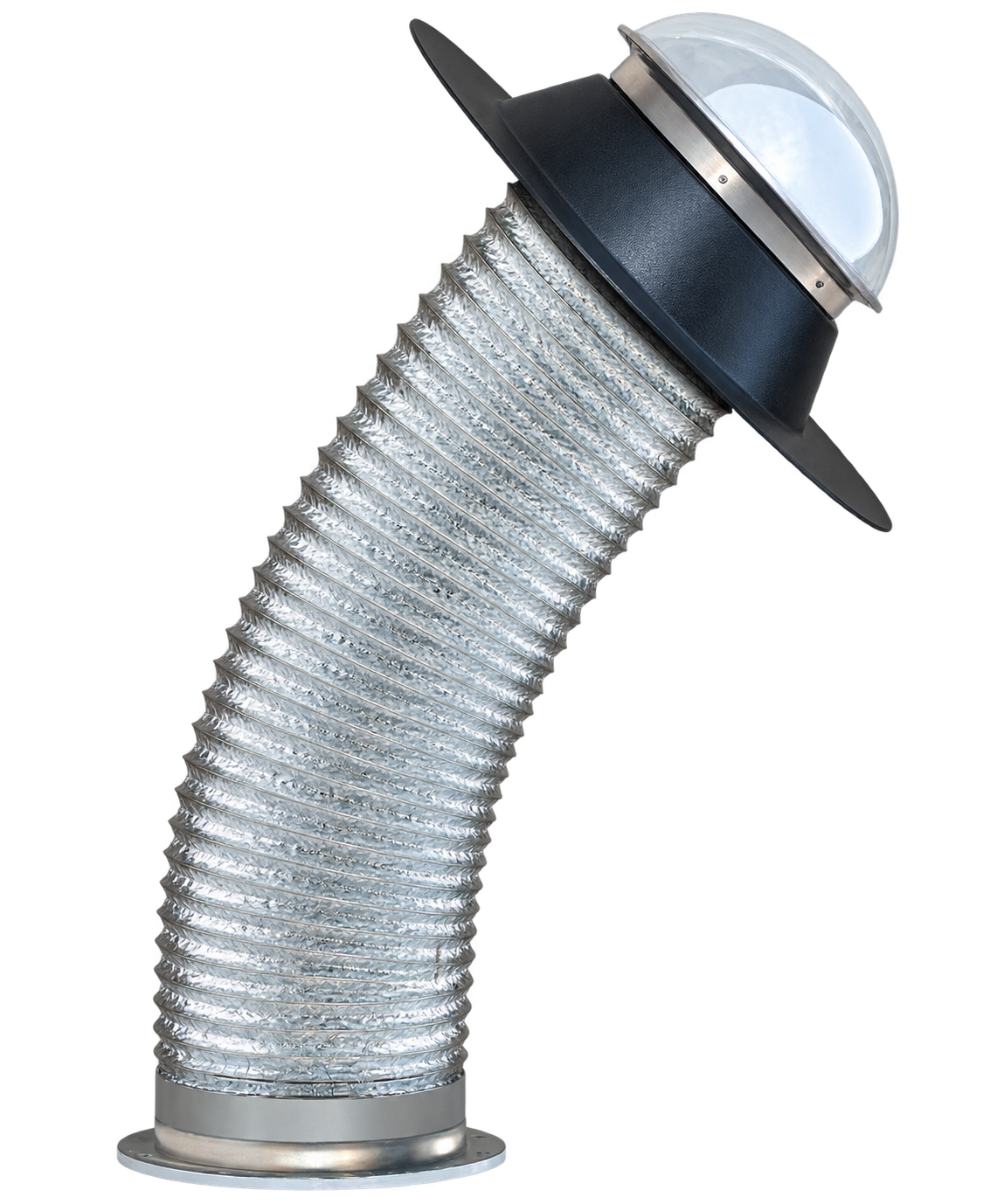

Flexible Sun Tubes
A flexible reflective aluminum tube can route around attic obstructions such as framing, ductwork and other services. This allows more freedom in positioning the roof opening and ceiling diffuser.
Choose flexible tubing when the installation cannot accommodate a reasonably direct rigid route.
Diameter
13 inches
Tube length
8 ft standard; 12 ft optional
Best for Attic obstructions or offset roof and ceiling locations.
Rigid or Flexible?
Choose the route first. Then select the roof configuration and interior finish.
Prioritize daylight transmission
Choose Rigid
A relatively clear roof-to-ceiling route lets the smooth reflective tube carry daylight with fewer bends.
Compare roof configurations for rigid and flexible tubes. Not every configuration is available in every diameter.
Nominal tube diameters by roof configuration (inches)
Roof configuration
Rigid tube
Flexible tube
Flat flashing
10, 13, 18, 21
13
Sloped flashing
10, 13, 18, 21
13
Curb mount
10, 13, 21
13
Low-profile glass
13
13
Configuration reference: manufacturer’s 2019 brochure. Confirm current availability and roof compatibility before ordering.

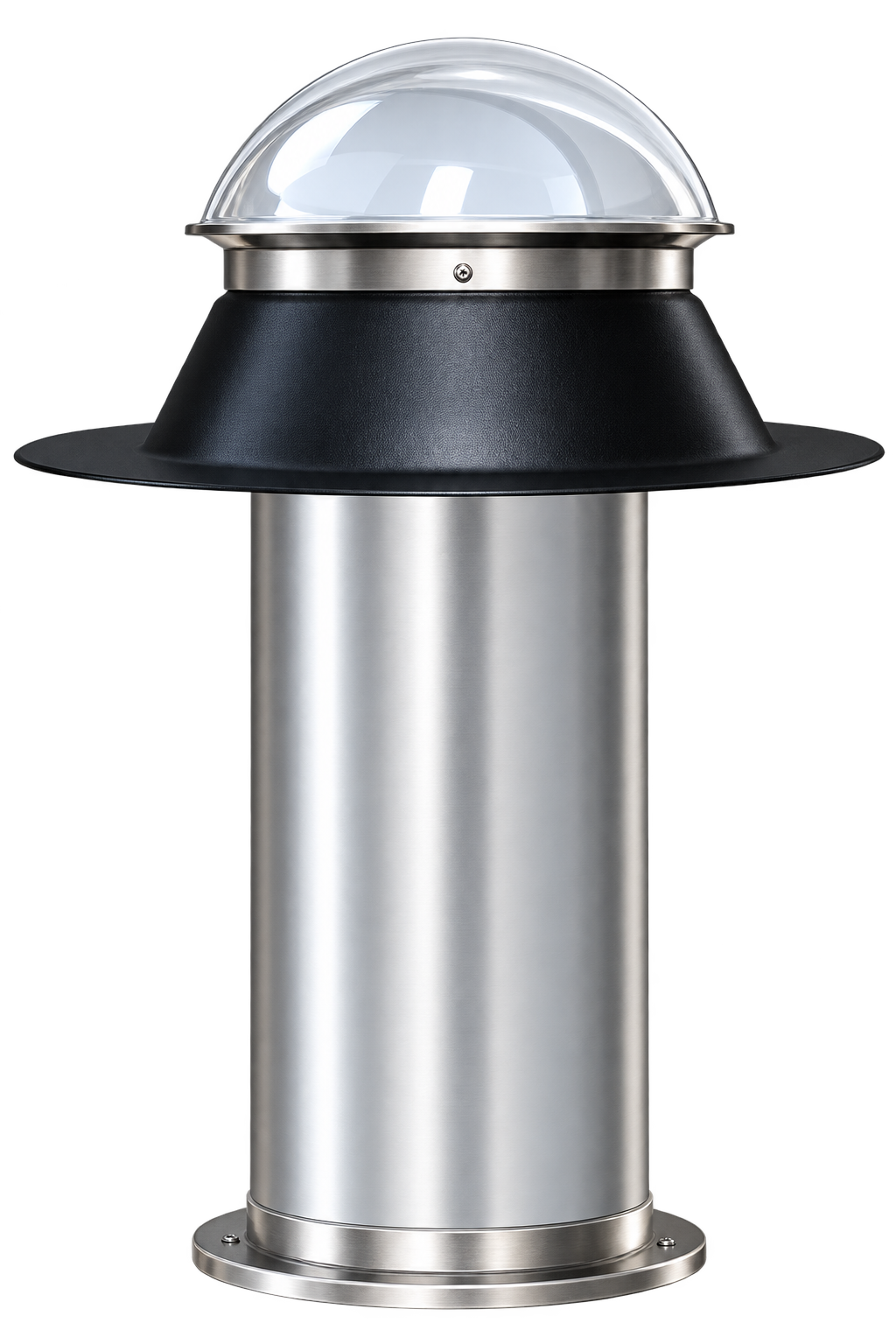

Rigid tube with flat flashingCurb-mounted dome collector

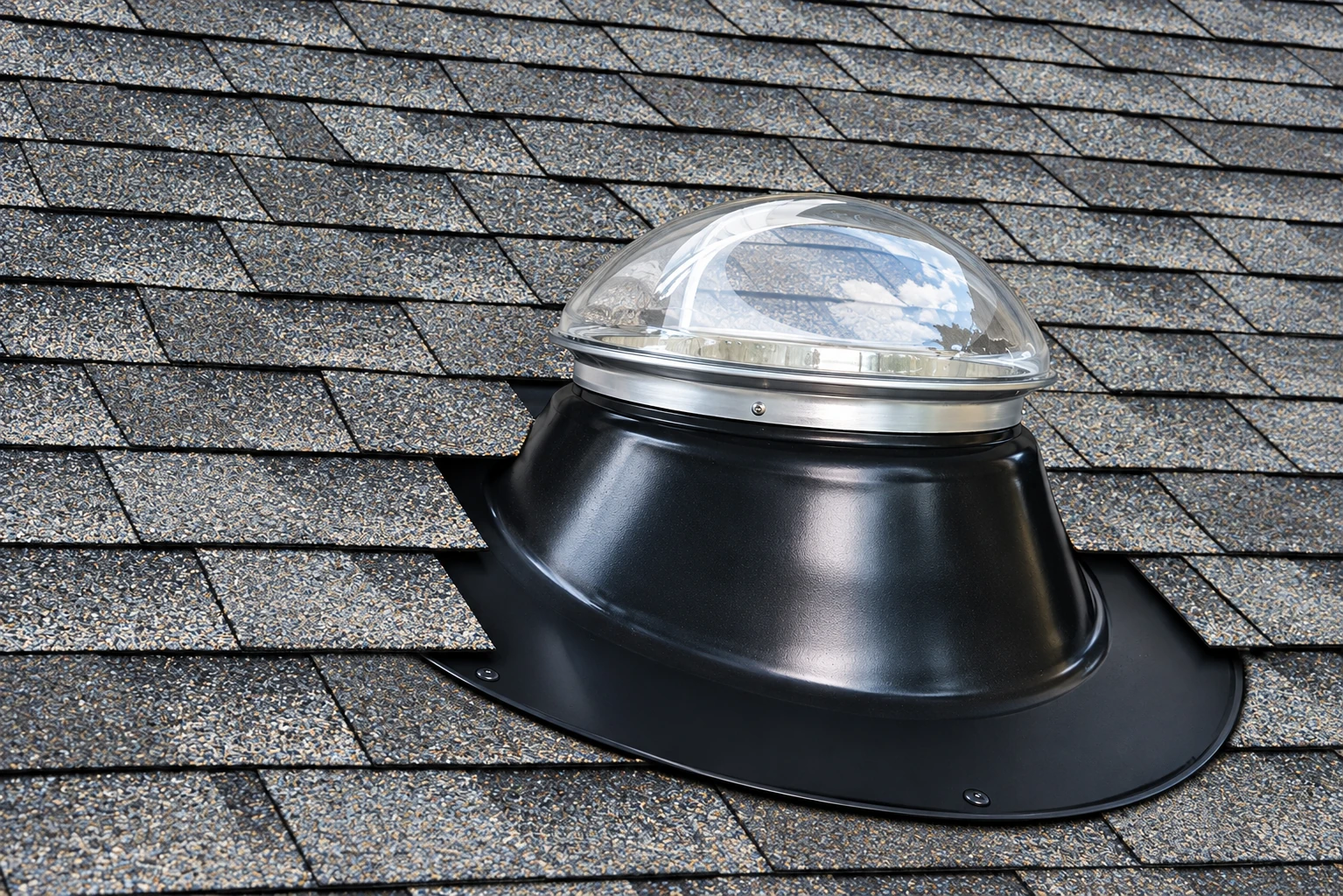

Sloped Roof
Angled flashing coordinates the collector with the roof slope.
Flat Roof
A flat-roof arrangement suits the selected roof assembly.

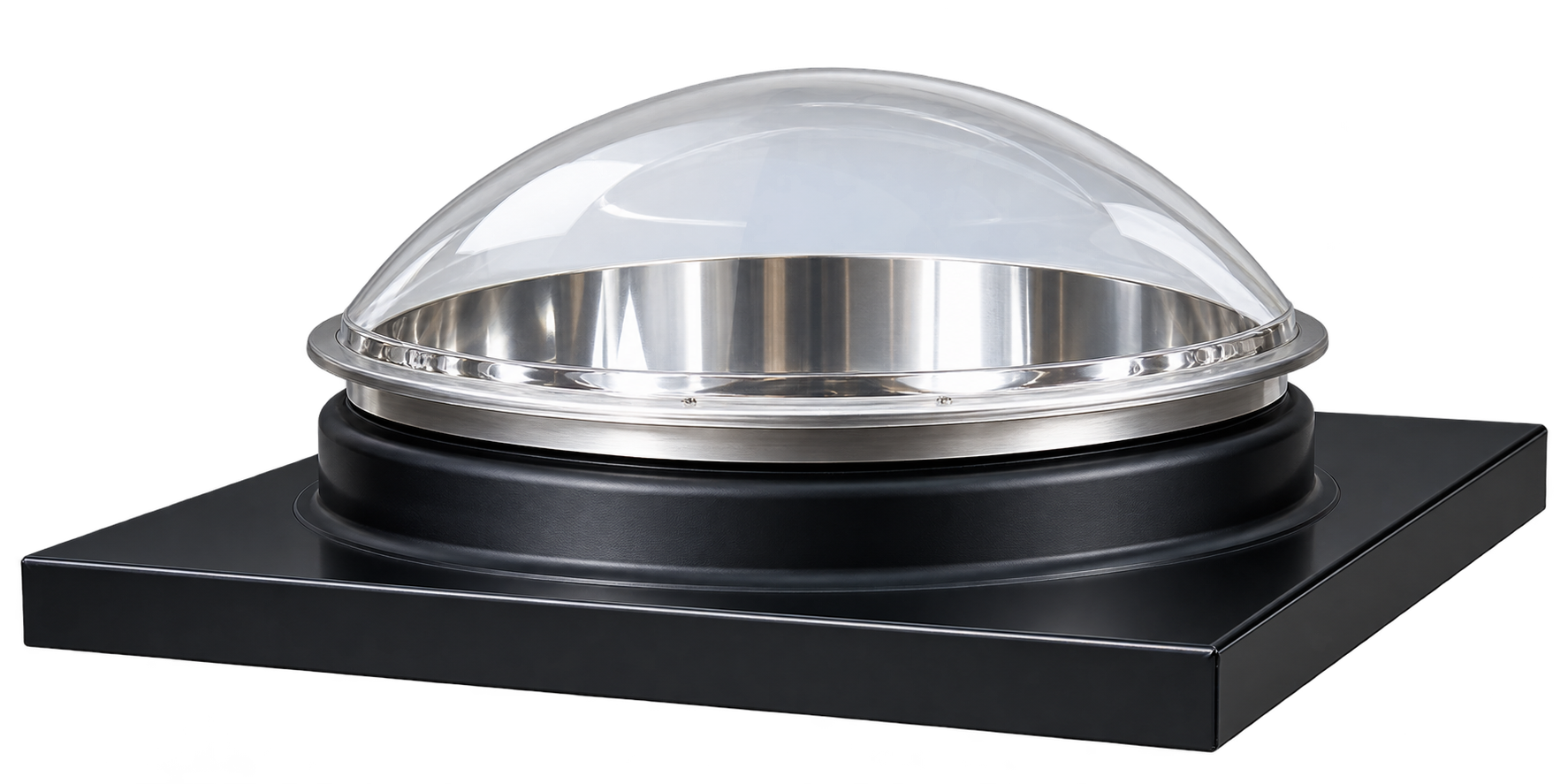

Curb Mount
A collector configuration designed to sit over a roof curb.
Low-Profile Glass
A low-profile glazed collector offers an alternative to a dome.
Dome configurations use an impact-resistant acrylic collector. Confirm the diameter, roof material, slope, flashing and available configuration together before ordering.
The finishing touch
Choose Your Interior Diffuser
The diffuser is the visible lens at the ceiling. Complete your sun tube with a style that suits the room and the appearance of light you prefer.
Two interior diffuser styles. Room scenes are illustrative.
Prismatic Diffuser
A textured, prism-patterned lens spreads incoming daylight, with a distinctive patterned appearance at the ceiling.
Best for A patterned lens and bright daylight distribution.
Soft White Diffuser
A smooth white lens softens incoming daylight for a gentler appearance. Its understated finish complements a clean ceiling design.
Best for A softer-looking ceiling lens and diffused light.
Confirm diffuser compatibility with the chosen tube model and diameter. Daylight levels vary with the roof exposure, tube length, bends and weather.

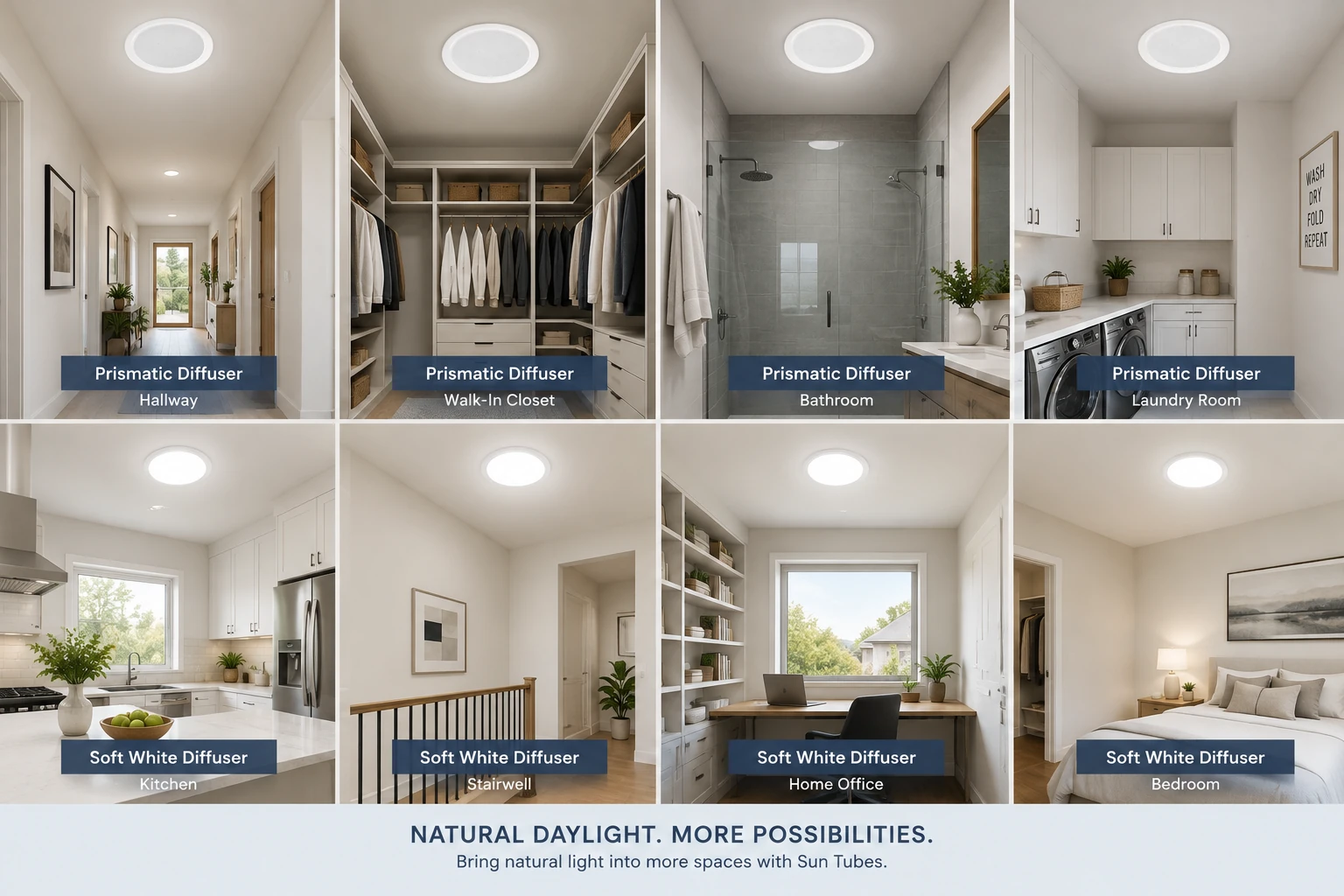

Daylight where you need it
Bring Light Into More Spaces
Consider sun tubes for bathrooms, hallways, closets, laundry rooms, kitchens, garages and other interior rooms.
Interior inspiration—not a guarantee of light output for a particular room.
Plan your project
Bring Natural Light Into More of Your Home
Not sure whether rigid or flexible is right for your project? Our team can help compare tube sizes, roof configurations, diffuser options and installation requirements.
